Series H4100: Premium Sound Control
When maximum sound control is essential, Woodfold's Series H4100 delivers STC 41 acoustic performance with steel-st reinforced continuous vinyl. The ultimate solution for premium acoustic environments requiring uncompromising sound reduction.
Premium sound control since 1990
Why Series H4100 Sets the Acoustic Standard
When recording studios need isolation, executive offices require complete privacy, and premium spaces demand the ultimate in sound control, they specify Series H4100. This isn't just an acoustic partition—it's the pinnacle of sound reduction technology in accordion doors.
The Ultimate Acoustic Challenge
Standard acoustic solutions can't handle the most demanding sound control requirements. Board meetings need absolute privacy. Music rooms require complete isolation. Executive suites need sanctuary from office noise.
Series H4100 provides STC 41 sound rating with steel-strips reinforced continuous vinyl construction. Engineered with advanced acoustic materials and reinforcement that creates the most effective sound barrier available in flexible partitions.
Why Series H4100 Stands Apart
STC 41 Sound Rating
The highest sound reduction rating available in flexible accordion partitions. Creates exceptional acoustic separation for the most demanding sound control applications and premium environments.
Steel-Strips Reinforced
Continuous vinyl construction reinforced with steel strips for maximum acoustic performance and structural integrity. Enhanced durability for premium applications requiring the best in sound control.
Premium Materials
Engineered with the finest acoustic materials available. Heavy-duty construction ensures long-lasting performance in premium environments where only the best acoustic solution will suffice.
Luxury Finish Options
Available in premium finishes that complement the most sophisticated interior designs. Choose from options that enhance your luxury space while delivering unmatched acoustic performance.
Series H4100 Specifications
Steel-Reinforced Acoustic Construction
Series H4100 features premium continuous vinyl construction reinforced with steel strips for maximum acoustic performance. Engineered with the most advanced acoustic materials and construction techniques available in flexible partition technology.
Where Series H4100 Excels

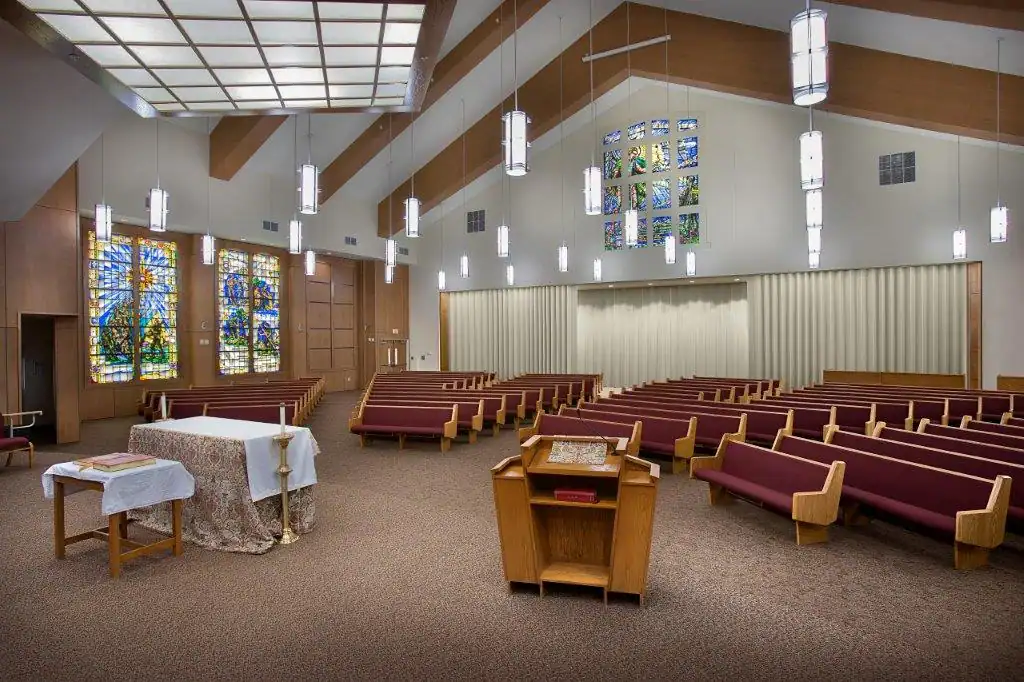

Series H4100 Installations
Ready for Ultimate Sound Control?
Get instant pricing for Series H4100. Premium acoustic performance, custom-built to your specifications.
Configure Series H4100 NowSeries H4100 — Details, Finishes & Measuring

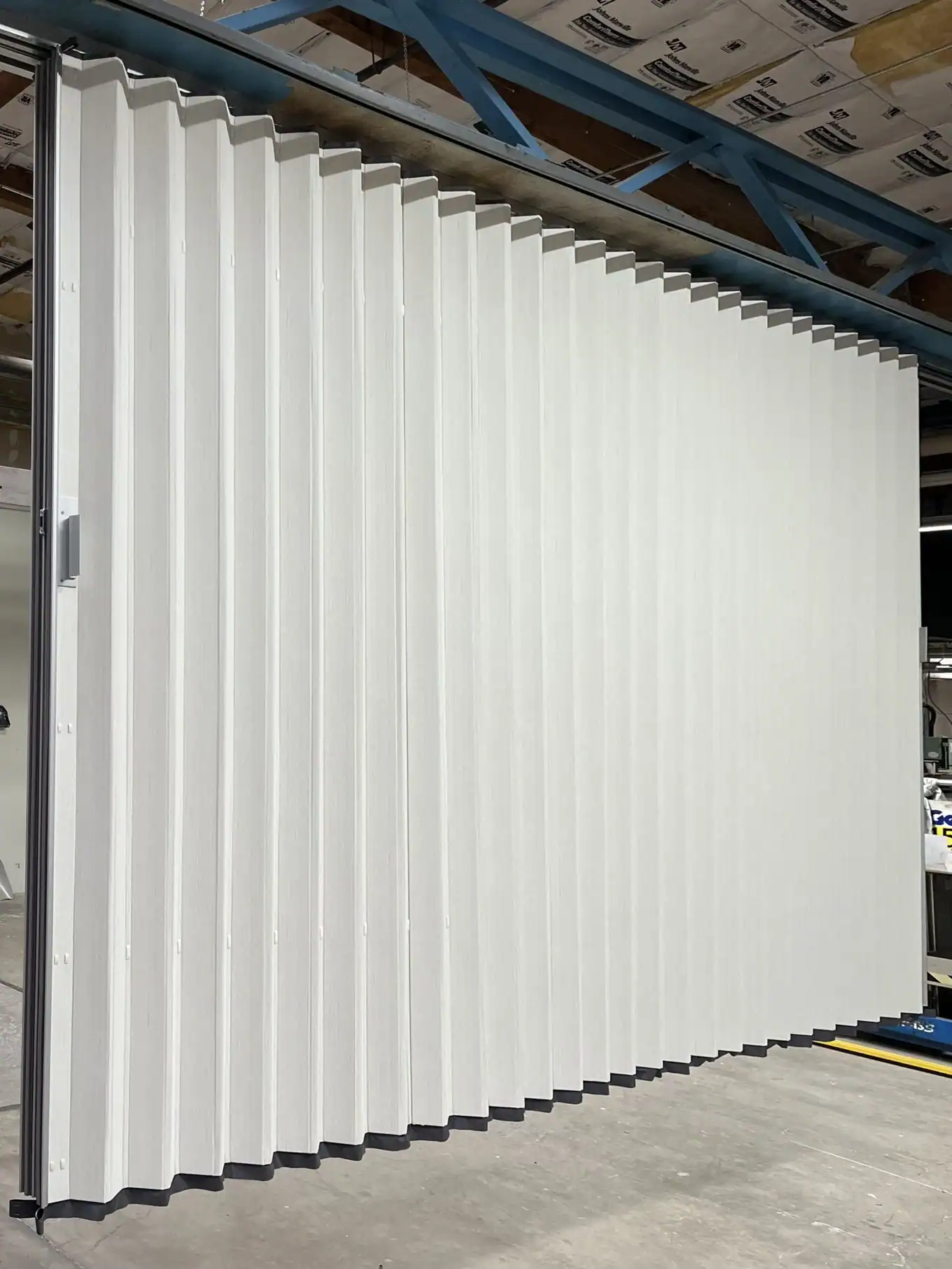

The H4100 acoustic accordion partitions consist of two continuous laminated vinyl covers assembled to steel pantographs supported by aluminum covered steel channel posts at each end with an STC 41*. This series also incorporates steel strips laminated within each fold for enhanced acoustical performance. These acoustic partitions are easy to operate, durable and come in a wide variety of options and finishes. Acoustic Accordion Partitions are an ideal sight and sound barrier for interiors that require frequent flexibility in room division.
Woodfold’s continuous vinyl design accordion partitions are custom designed and manufactured to suit the specific needs of your space.
Two laminated covers with clean, crisp lines, multi-ply soft vinyl sweepstrip sound seals at the top and bottom of both sides. The laminated construction ensures the covers will not sag or bag over time.
Full height dual-magnetic closure strips in the jamb allow ease of closure and help to seal out sound.
Our accordion partitions provide years of smooth, easy folding action and allows the doors to easily maneuver. The laminated cover construction adds strength and stability to the door.
A selection of heavy duty aluminum track systems are available to accommodate various ceiling conditions. Three track system types for a wide range of installations.
- Covers have multi-ply sweep strips top and bottom both sides of the partition for an acoustical seal.
- Material: Steel and fiberboard inners with an acoustical lining, exterior: Commercial vinyl continuous curtain.
- The top sweep strips are 1/2 inch (13 mm).
- Partitions have an internal framing of 14 ga. (2 mm) half hard steel riveted to form “X” construction pantographs.
- Pantographs provide an even extension and contraction without binding on straight runs of track as shown on the plans.
- Partitions have pantographs located at top and bottom, plus intermediate pantographs located no more than 4 feet (1219 mm) on center for heights over 8 feet (2.438m). The bottom sweep strips are 1-1/2 inches (38 mm). Longer Sweeps are available.
- The lead post is trimmed with clear anodized aluminum and includes mechanical latching.
- Wheels: Nylon-tired steel ball bearing wheels; 4 wheeled carriers on each lead post with intermediate carriers every 18″ on center and nylon-tired two wheeled carriers elsewhere as appropriate.
- Lead Posts: Extruded aluminum faces on full height steel channel.
- Handles: Aluminum with steel pull handles.
- Latch: Deadlatch with thumbturn one-side/two-sides and a range of keylock options available.
- Track: Available in Type 15, 18 or 71.
- Width: No max, 20ft sections require type B rolling post.
- Height: Up to 12’ 1″.
- Stack Width: Extended: 5-1/2″ – Closed 7-1/2″.
- Partition hanging weights: 2.7lb per sq ft.
Notes: *Sound Transmission Class (STC): The 3100 Continuous Vinyl Acoustical Partition has a sound transmission class (STC) rating of 31.The specific test procedure is defined by ASTM E90
Customers can choose vinyl from either the Woodfold Vinyl collection or the Moderco Vinyl collection. Both options are detailed below.
To assure correct sizing of your Woodfold accordion door the finished opening should be measured precisely from side to side for width and from the header surface where the track will be attached, to the finished floor or counter surface for height.
Width Measure the width at the bottom, halfway up and at the top of the door and use the widest dimension you have. Note: if the widest dimension is at the bottom or center you may have to trim the suspension track to fit your opening at the top of the door as track lengths are made to the ordering width. This can be done with a hacksaw.
Height Measure from the top of the finished floor to the point where you are going to attach the track. NOTE: For those areas where the floor is uneven (e.g. concrete floors) please take 3 or 4 height measurements along the floor. Use the shortest measurement as the finished opening height except 2100, 3300 or 4100. For sound doors use tallest height.
Dimensions should be stated width first and then height and should represent sizes after any and all modifications have been done to the opening. Unless customer specified, we will allow 9/16″ floor clearance for doors over 4′ high and 5/16″ for doors 4′ and less. Beware of variations in floor and/or ceiling surfaces.
Please check your measurements for accuracy. Contact us if you need additional assistance.
