Series 540: Security with Clear Vision
When you need maximum security without sacrificing visibility, Woodfold's Series 540 delivers the perfect balance. Rigid plastic panels with steel rod reinforcement provide protection while maintaining visual access.
Visibility without compromise since 2000
Why Series 540 Changes Security Design
When detention centers need to maintain visual monitoring, retail spaces require security after hours with visibility, and secure areas need protection without isolation, they specify Series 540. This isn't just a security door—it's visibility with protection.
The Visibility Challenge
Traditional security doors create blind spots and isolation. You can't see what's happening behind solid barriers. Supervision becomes impossible, and security monitoring suffers from lack of visual access.
Series 540 solves this dilemma with rigid plastic panels that provide security while maintaining complete visibility. Steel rod reinforcement ensures structural integrity without compromising your ability to see through the barrier.
Why Series 540 Stands Apart
Rigid Plastic Panels
High-impact resistant plastic panels provide durability and security while maintaining optical clarity. Engineered to withstand rigorous use in demanding security environments.
Steel Rod Reinforcement
Internal steel rod reinforcement provides exceptional structural strength without obstructing visibility. Creates a formidable barrier that maintains security while allowing clear visual access.
Custom Security Solutions
Every security door is custom-built to your exact specifications. Widths from 3 feet to 30+ feet. Heights up to 10'1". Security with visibility tailored to your specific requirements.
High-Impact Protection
Durable plastic construction resists impact damage while maintaining optical clarity. Perfect for high-traffic areas requiring both security and visual monitoring capabilities.
Series 540 Specifications
Reinforced Security Construction
Series 540 features rigid plastic panels with steel rod reinforcement engineered for maximum security and visibility. Designed for secure environments requiring both protection and visual monitoring capabilities.
Where Series 540 Excels

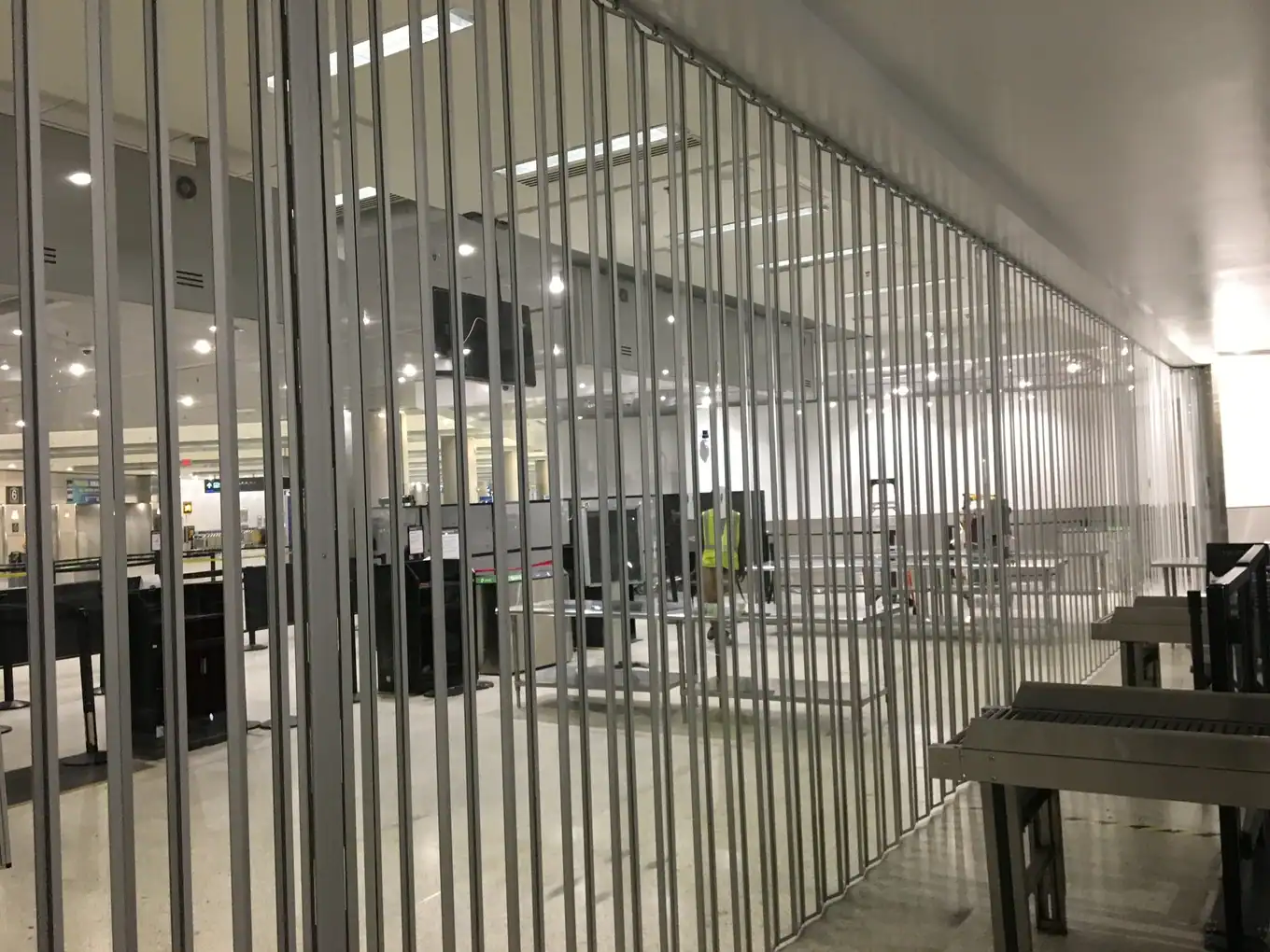

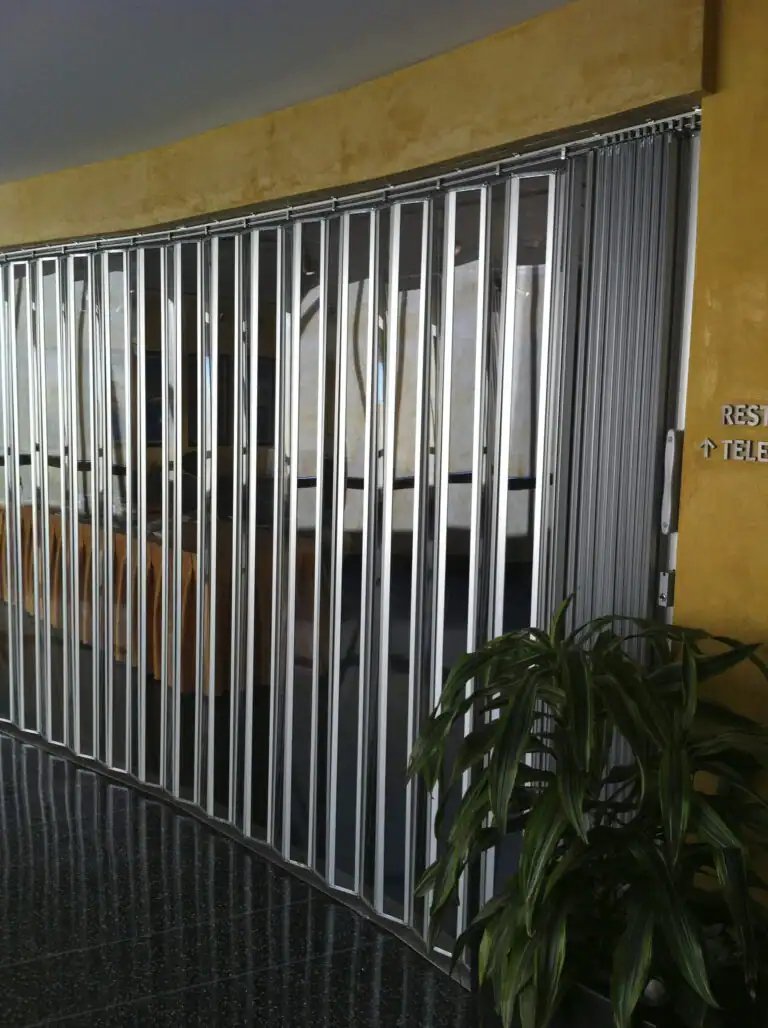

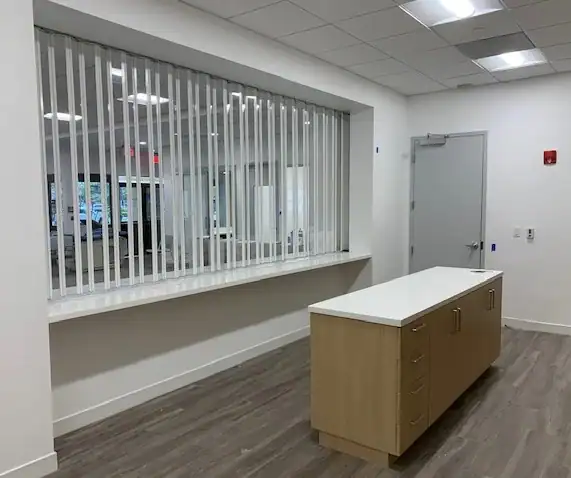

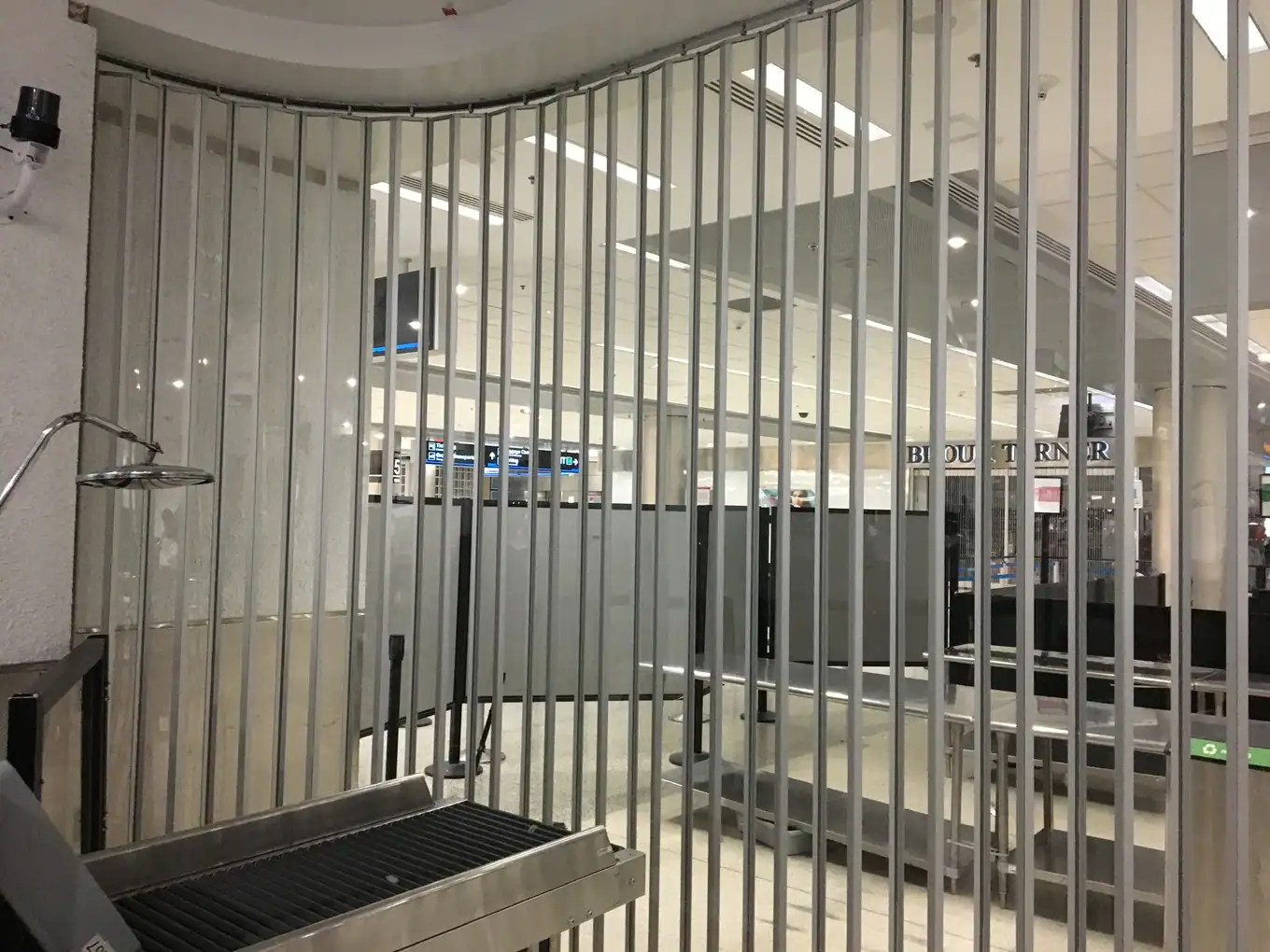

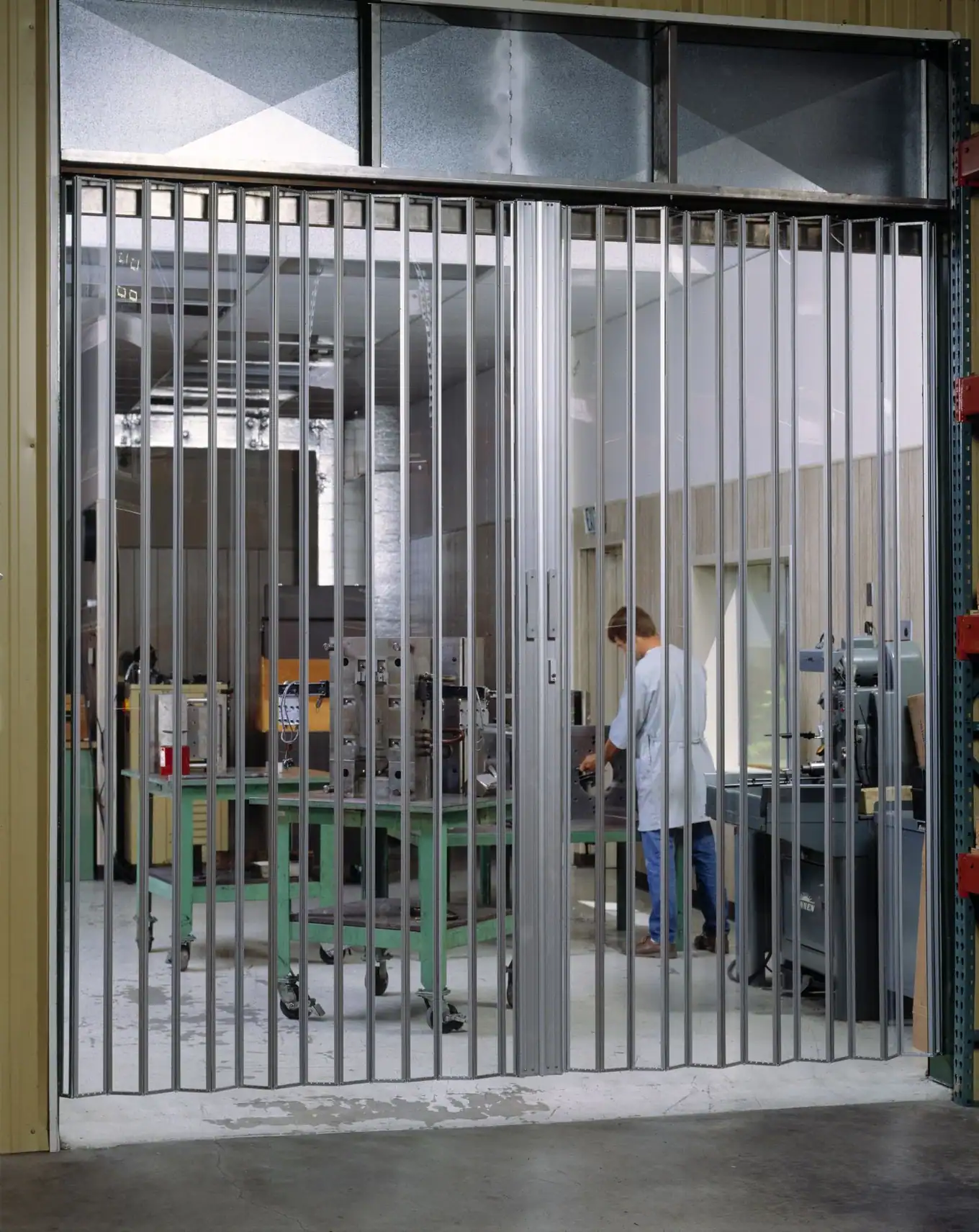

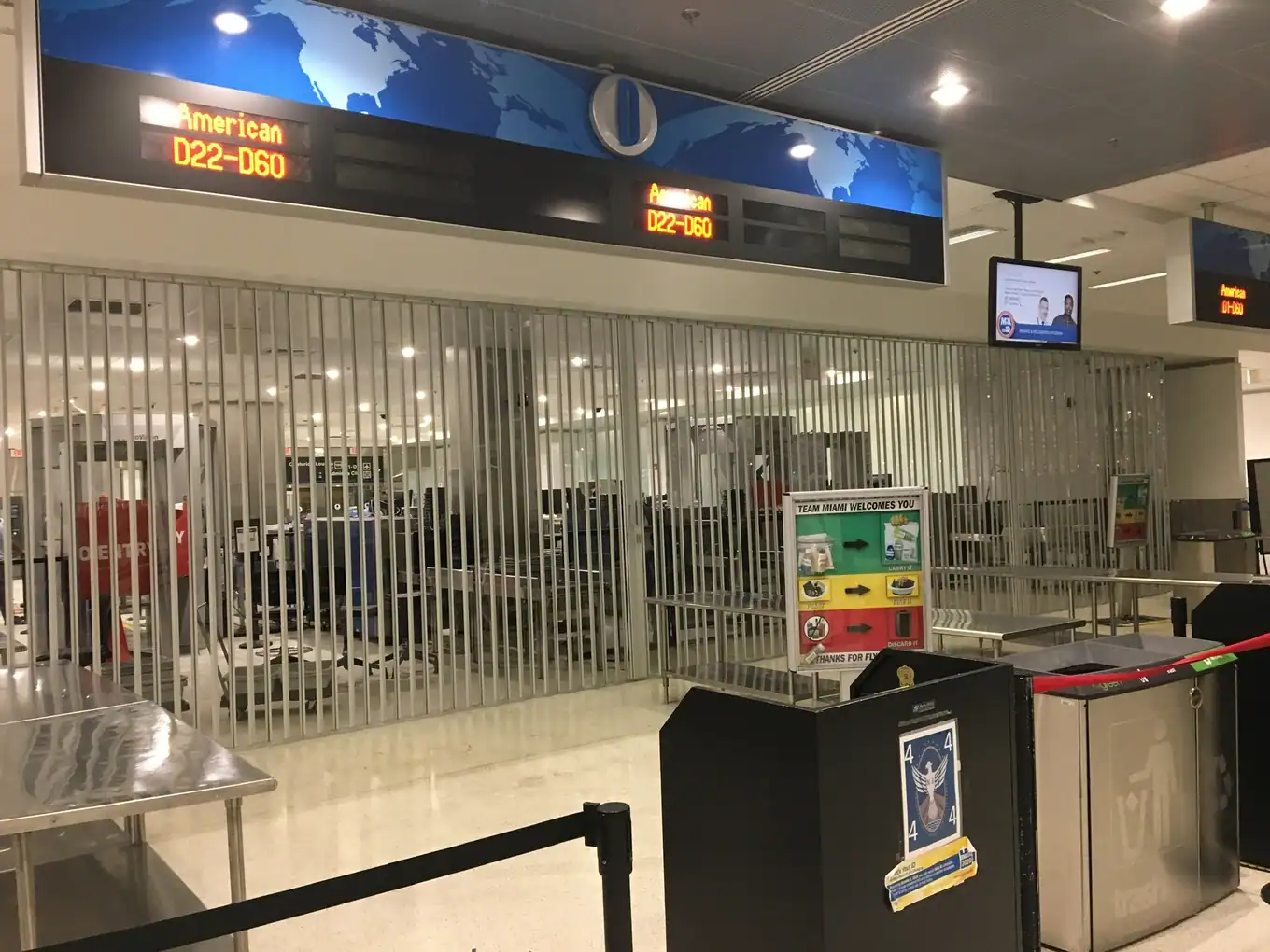

Series 540 Installations
Ready for Security with Visibility?
Get instant pricing for Series 540. Security without compromising visibility, custom-built to your specifications.
Configure Series 540 NowSeries 540 — Details, Finishes & Measuring
Maximizing security in retail or commercial venues doesn’t mean minimizing eye appeal – not with Woodfold Visifold Series 540 Security Accordion Doors on site. Combining the smooth, flawless operation of the Woodfold hardware hinge system with enhanced security between panels thanks to a rigid PVC hinge over a steel rod, the Series 540 offers an unobstructed view of what’s inside while assuring protection. Plus, since every setting has its own distinctive style, we offer a bounty of options: a spectrum of finishes, curvable tracks, different locks and latches, and the ability to combine sleek acrylic with gleaming hardwood or Vinyl-Lam panels.
- Panels: 4-1/4″ wide acrylic panels (transparent clear or bronze) inserted into aluminum side channels (clear, bronze, gold, sand or white) yielding 4¼” overall width.
- Aluminum panel frame channels: Silver finish, White finish, Bronze finish, Sand finish, Black finish
- Panel Connectors: Rigid vinyl with steel rods color-coordinated to side channels Standard colors: White, Sand, Gray, Brown, Black
- Track: 1-1/8″ x 1″ aluminum, dark bronze, clear or gold finish; curvable option available
- Wheels: Nylon wheels on steel axle with ball bearings supplied as standard
- Lead Post: ¾” x 2¾” aluminum, color-coordinated to side channels
- Jamb Molding: 1-5/8″ wide x 1″ deep aluminum
- Latch: Keylock on both sides; other options available
- Handle: Molded PVC with finger recess
- Width: Custom crafted to any width
- Height: Up to 10’1″
- Stacking Space: 1¼” per foot plus 2¾” for lead post
* Woodfold’s Series 140, 220, 240, 440 and 540 have been tested for ADA compliance for opening load force per ADA/BOMA SEC 4.1311. Tests were conducted by MEI Charlton, Inc., Portland, OR. Certain ADA applications may call for specific handle location placement which should be specified when door is ordered.
PLEASE NOTE: The stain and color samples on this page have been color matched using a monitor calibrated to the sRGB IEC1966-2.1 color profile. Intended only as a guide for color selection, the actual finish materials will vary due to the natural and acceptable variations in wood grain characteristics, textures, and color tones, as well as the color variation that occurs among individual computer monitors.

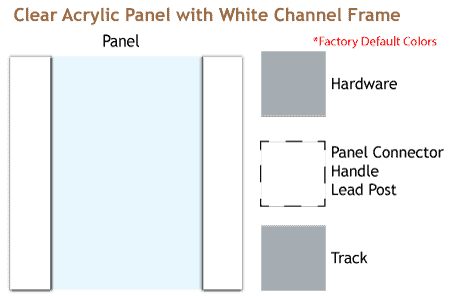

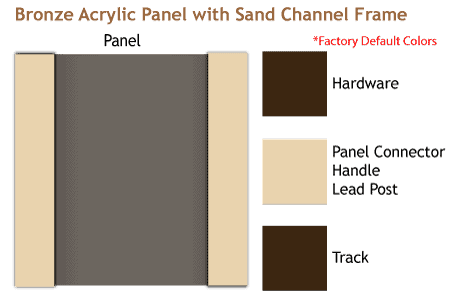

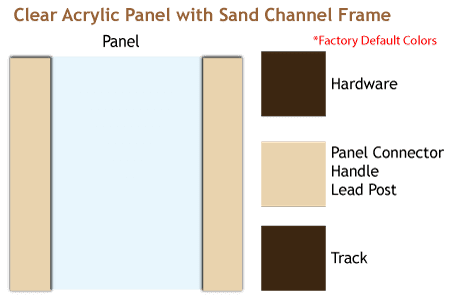

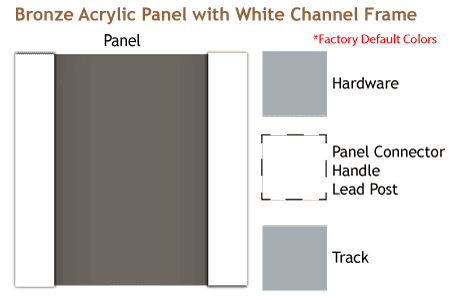

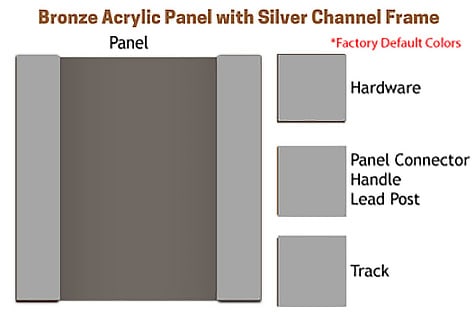

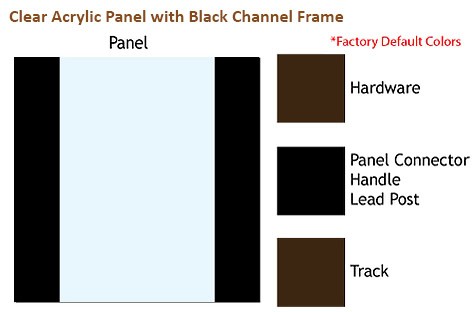

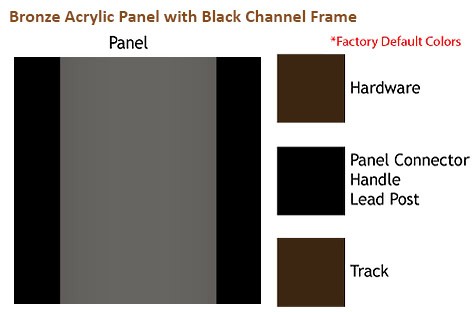

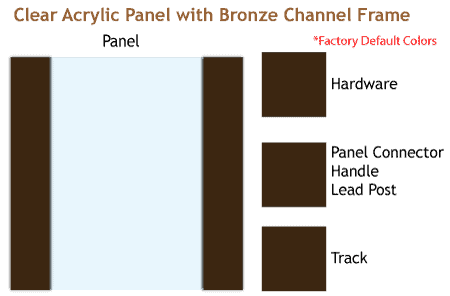

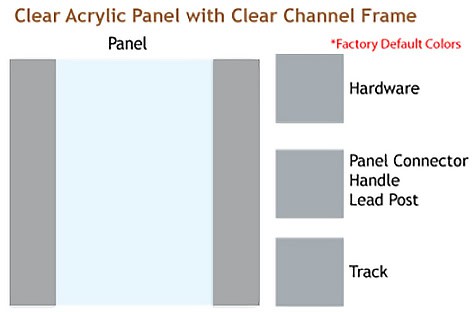

*All panel samples show factory default color combinations, unless noted otherwise.
Acrylic Panels

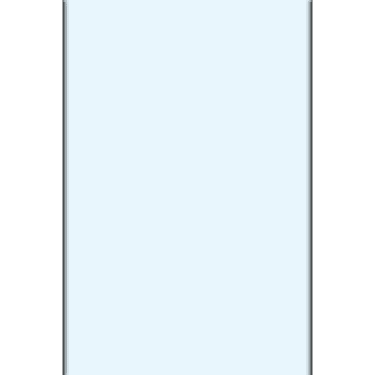

Visifold Series 440 and 540 doors available with .118″ thick, transparent clear or bronze acrylic panel from stock.
Hardware & Connectors
To assure correct sizing of your Woodfold accordion door the finished opening should be measured precisely from side to side for width and from the header surface where the track will be attached, to the finished floor or counter surface for height.
Width Measure the width at the bottom, halfway up and at the top of the door and use the widest dimension you have. Note: if the widest dimension is at the bottom or center you may have to trim the suspension track to fit your opening at the top of the door as track lengths are made to the ordering width. This can be done with a hacksaw.
Height Measure from the top of the finished floor to the point where you are going to attach the track. NOTE: For those areas where the floor is uneven (e.g. concrete floors) please take 3 or 4 height measurements along the floor. Use the shortest measurement as the finished opening height except 2100, 3300 or 4100. For sound doors use tallest height.
Dimensions should be stated width first and then height and should represent sizes after any and all modifications have been done to the opening. Unless customer specified, we will allow 9/16″ floor clearance for doors over 4′ high and 5/16″ for doors 4′ and less. Beware of variations in floor and/or ceiling surfaces.
Please check your measurements for accuracy. Contact us if you need additional assistance.
