Series 440 Visifold: See Through. Stay Private.
Acrylic panels let you divide space while maintaining sightlines. Perfect for retail, hospitality, and any environment where you need both separation and visual connection.
Modern design meets practical function
The Perfect Balance: Privacy and Visibility
Sometimes you need to divide a space without losing sight of what's happening on the other side. Series 440 Visifold delivers exactly that—crystal-clear acrylic panels that create separation while maintaining visual connection.
The Visibility Challenge

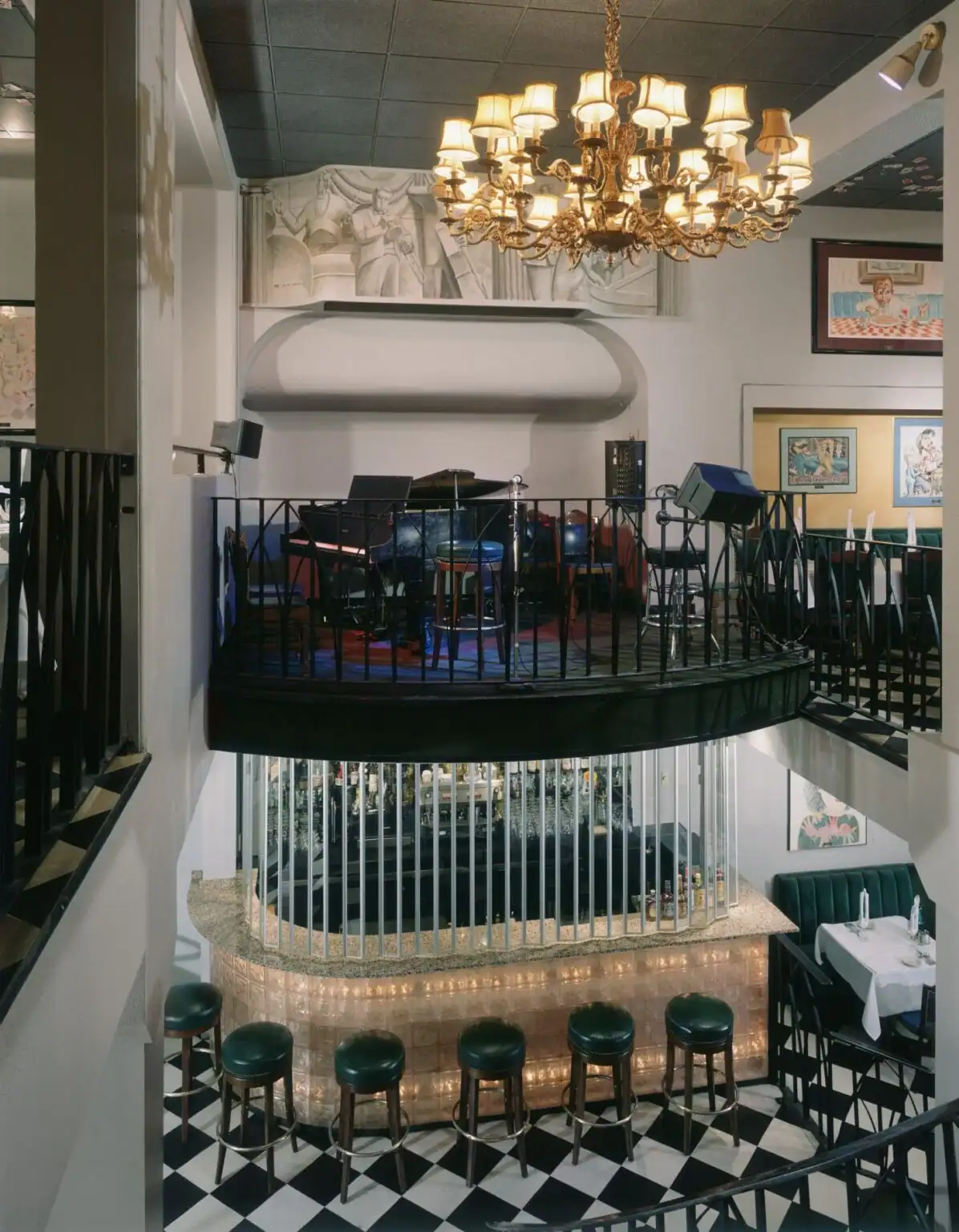

Your restaurant needs to separate the bar from the dining room, but servers need to see when tables need attention. Your retail store wants to create distinct zones, but staff needs visibility for security.
Series 440 solves this elegantly. Acrylic panels provide clear sightlines while reducing noise and dust. You get the benefits of division without losing visual connection.
Why Series 440 Stands Out
Crystal Clear Acrylic
Premium 'Plexiglas' panels provide exceptional clarity and durability. Maintain visibility while creating distinct spaces.
Reduces Noise and Dust
While maintaining visibility, acrylic panels help reduce annoying noise and dust transfer between spaces.
Custom Crafted Design
Acrylic panels can be combined with hardwood or laminate panels for unique decorative touches. Custom-crafted to your vision.
Heavy-Duty Construction
Exclusive steel hardware hinge system ensures simple operation and exceptional strength. Built for high-traffic commercial environments.
Series 440 Specifications
Technical Information
Series 440 Visifold features heavy-duty acrylic panels inserted into aluminum side channels, creating a modern, durable room divider perfect for retail and hospitality settings.
Where Series 440 Excels
Series 440 Installations
Ready to Combine Visibility with Privacy?
Get instant pricing for Series 440 Visifold. Custom-built acrylic panels that divide space while maintaining sightlines.
Configure Series 440 NowSeries 440 — Details, Finishes & Measuring
A new concept in better security is now in sight: Woodfold Visifold Series 440 Accordion Doors are see-through commercial and retail security doors. Custom-crafted of heavy-duty acrylic panels and our exclusive steel hardware hinge system, this Series helps reduce annoying noise and dust while providing a welcome sense of openness. Designed to present an inviting entrance to retail and hospitality settings with moderate security needs, our Series 440 doors also serve as a unique decorative touch, and can be crafted to incorporate acrylic panels with those made of hardwood or Vinyl-Lam.
- Panels: 4-1/4″ wide Acrylic panels (transparent clear or bronze) inserted into aluminum side channels (clear, bronze, gold, sand or white) yielding 4¼” overall width.
- Aluminum panel frame channels: Silver finish, White finish, Bronze finish, Sand finish, Black finish
- Panel Connectors: Flexible vinyl panel connectors color-coordinated to side channels Standard colors: White, Sand, Gray, Brown, Black
- Track: 1-1/8″ x 1″ aluminum, dark bronze, clear or gold finish; curvable option available
- Wheels: Nylon wheels on steel axles with ball bearing supplied as standard
- Lead Post: ¾” x 2-¾” aluminum, color-coordinated to side channels
- Latch: Deadlatch with thumbturn two-sides; other options available
- Jamb Molding: 1″ wide x 3/8″ deep aluminum
- Handle: Molded PVC with finger recess
- Width: Custom crafted to any width
- Height: Up to 10′ 1″
- Stacking Space: 1 ¼” per foot plus 2 ¾” for lead post
* Woodfold’s Series 140, 220, 240, 440 and 540 have been tested for ADA compliance for opening load force per ADA/BOMA SEC 4.1311. Tests were conducted by MEI Charlton, Inc., Portland, OR. Certain ADA applications may call for specific handle location placement which should be specified when door is ordered.
PLEASE NOTE: The stain and color samples on this page have been color matched using a monitor calibrated to the sRGB IEC1966-2.1 color profile. Intended only as a guide for color selection, the actual finish materials will vary due to the natural and acceptable variations in wood grain characteristics, textures, and color tones, as well as the color variation that occurs among individual computer monitors.
*All panel samples show factory default color combinations, unless noted otherwise.
Acrylic Panels
Visifold Series 440 and 540 doors available with .118″ thick, transparent clear or bronze acrylic panel from stock.
Hardware & Connectors
To assure correct sizing of your Woodfold accordion door the finished opening should be measured precisely from side to side for width and from the header surface where the track will be attached, to the finished floor or counter surface for height.
Width Measure the width at the bottom, halfway up and at the top of the door and use the widest dimension you have. Note: if the widest dimension is at the bottom or center you may have to trim the suspension track to fit your opening at the top of the door as track lengths are made to the ordering width. This can be done with a hacksaw.
Height Measure from the top of the finished floor to the point where you are going to attach the track. NOTE: For those areas where the floor is uneven (e.g. concrete floors) please take 3 or 4 height measurements along the floor. Use the shortest measurement as the finished opening height except 2100, 3300 or 4100. For sound doors use tallest height.
Dimensions should be stated width first and then height and should represent sizes after any and all modifications have been done to the opening. Unless customer specified, we will allow 9/16″ floor clearance for doors over 4′ high and 5/16″ for doors 4′ and less. Beware of variations in floor and/or ceiling surfaces.
Please check your measurements for accuracy. Contact us if you need additional assistance.
