Series 240: Maximum Flexibility. Unmatched Durability.
No other accordion door matches the flexibility of Woodfold's Series 240. Specified more often than any other series. Built for high-use environments that demand reliability.
.opti.webp)
500,000+ installations and counting
Why Series 240 is the Industry Standard
When architects, facility managers, and space planners need reliability, they specify Series 240. It's not just an accordion door—it's a proven solution that transforms single-purpose rooms into flexible, multi-use spaces.
The Flexibility Challenge
Your classroom needs to become a meeting room. Your office needs to expand for training sessions. Your library needs quiet study spaces. Traditional walls lock you into one configuration.
Series 240 adapts in seconds. Deploy it when you need division. Stack it when you need open space. No construction. No permanent changes. Just flexibility on demand.
.opti.webp)
Why Series 240 Stands Apart
500,000+ Cycle Durability
Tested to withstand decades of daily use. Steel hardware system ensures flawless performance with minimal maintenance.
ADA Compliant
Meets accessibility standards for opening load force. Smooth operation ensures everyone can use the space comfortably.
Custom Crafted to Any Width
No standard sizes. Every door is custom-built to your exact opening. Widths from 3 feet to 30+ feet. Heights up to 10'1".
Wide Range of Finishes
Hardwood veneers, laminates, custom paint, stains, and plastic laminates. Match your existing decor or create a statement piece.
Series 240 Specifications
Product Details
Series 240 features Woodfold's exclusive steel hardware system that delivers flawless performance with minimal footprint. Available in hardwood veneers and laminates, finished on both sides.
.opti.webp)
Where Series 240 Excels

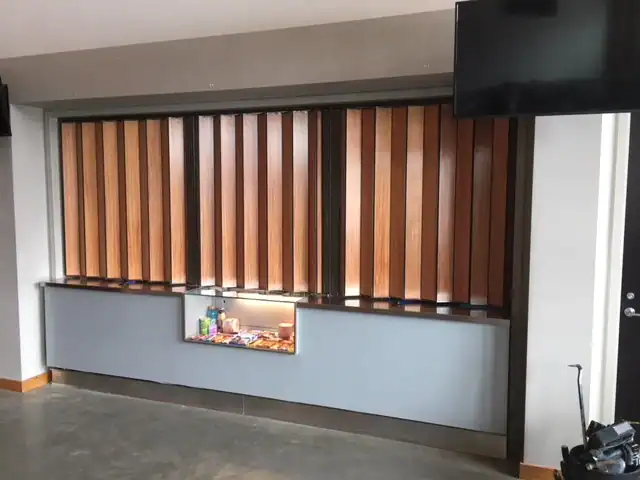

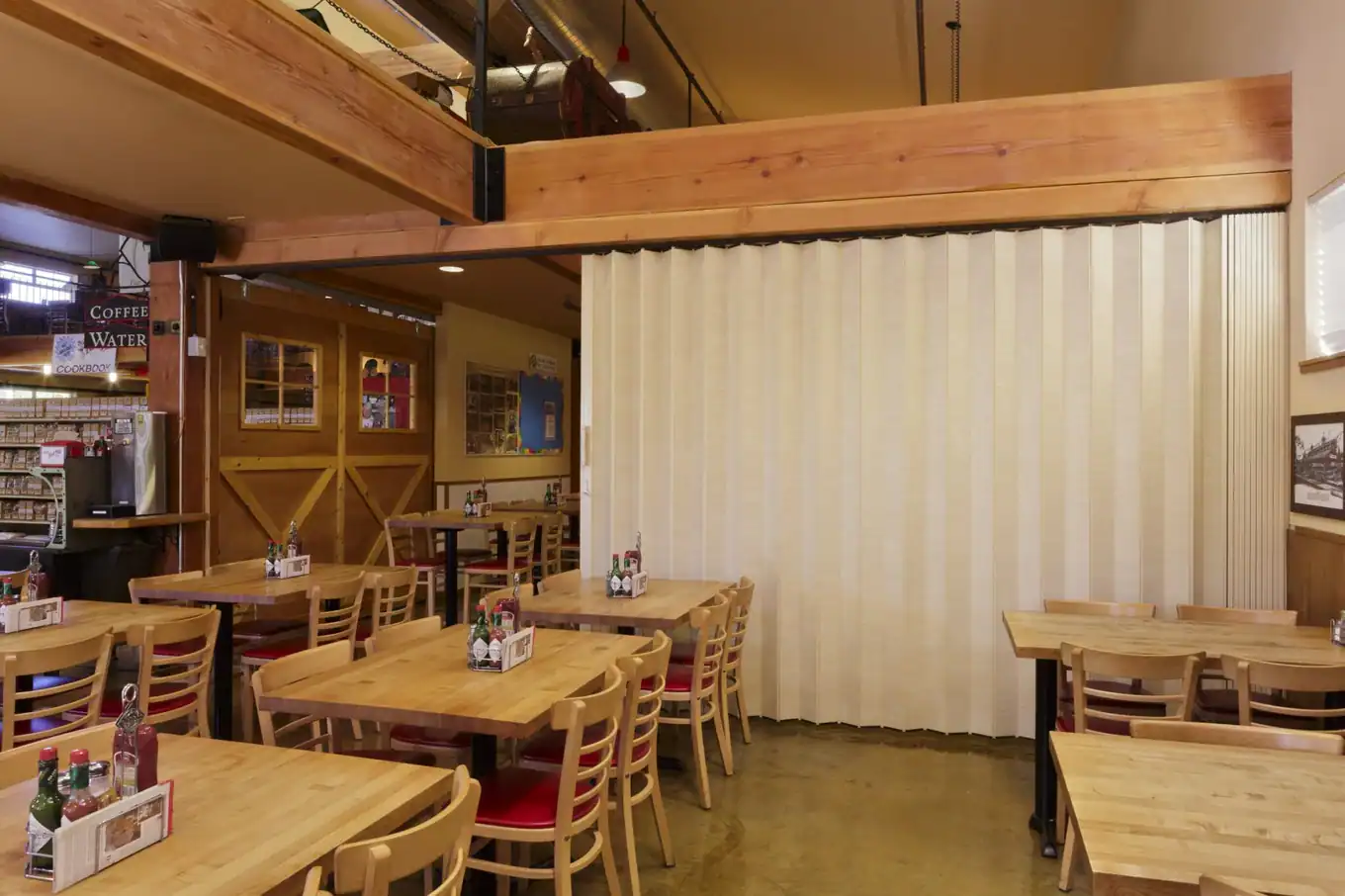

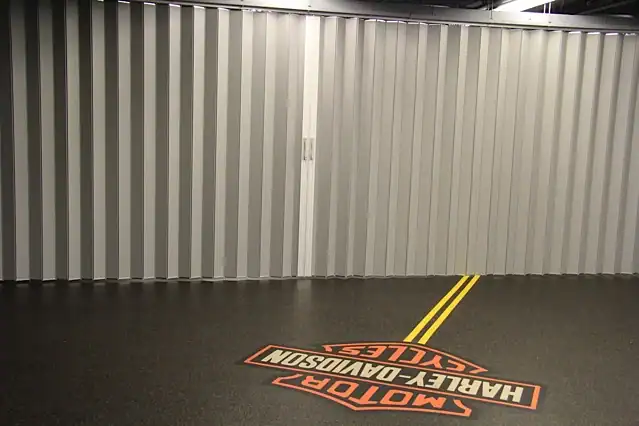

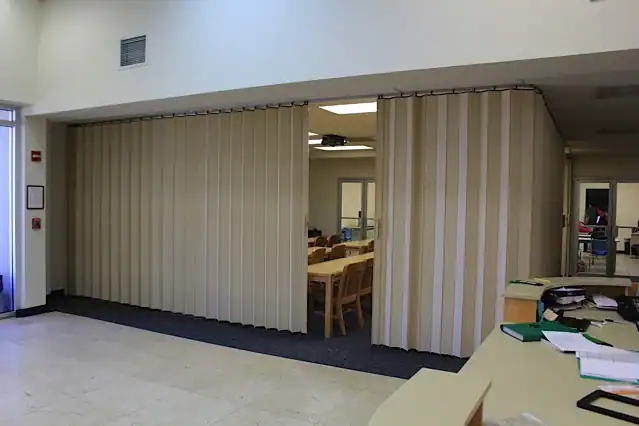

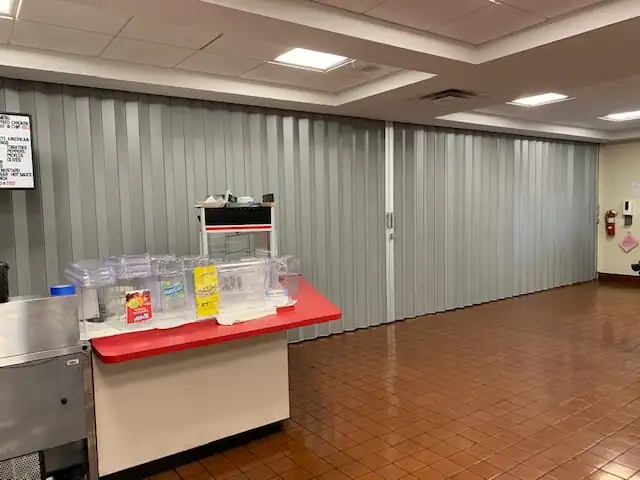

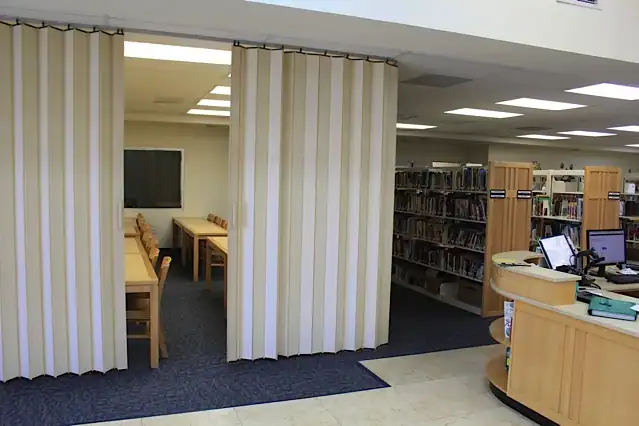

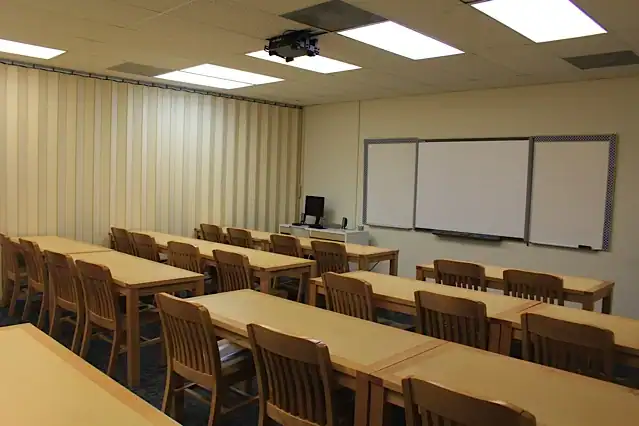

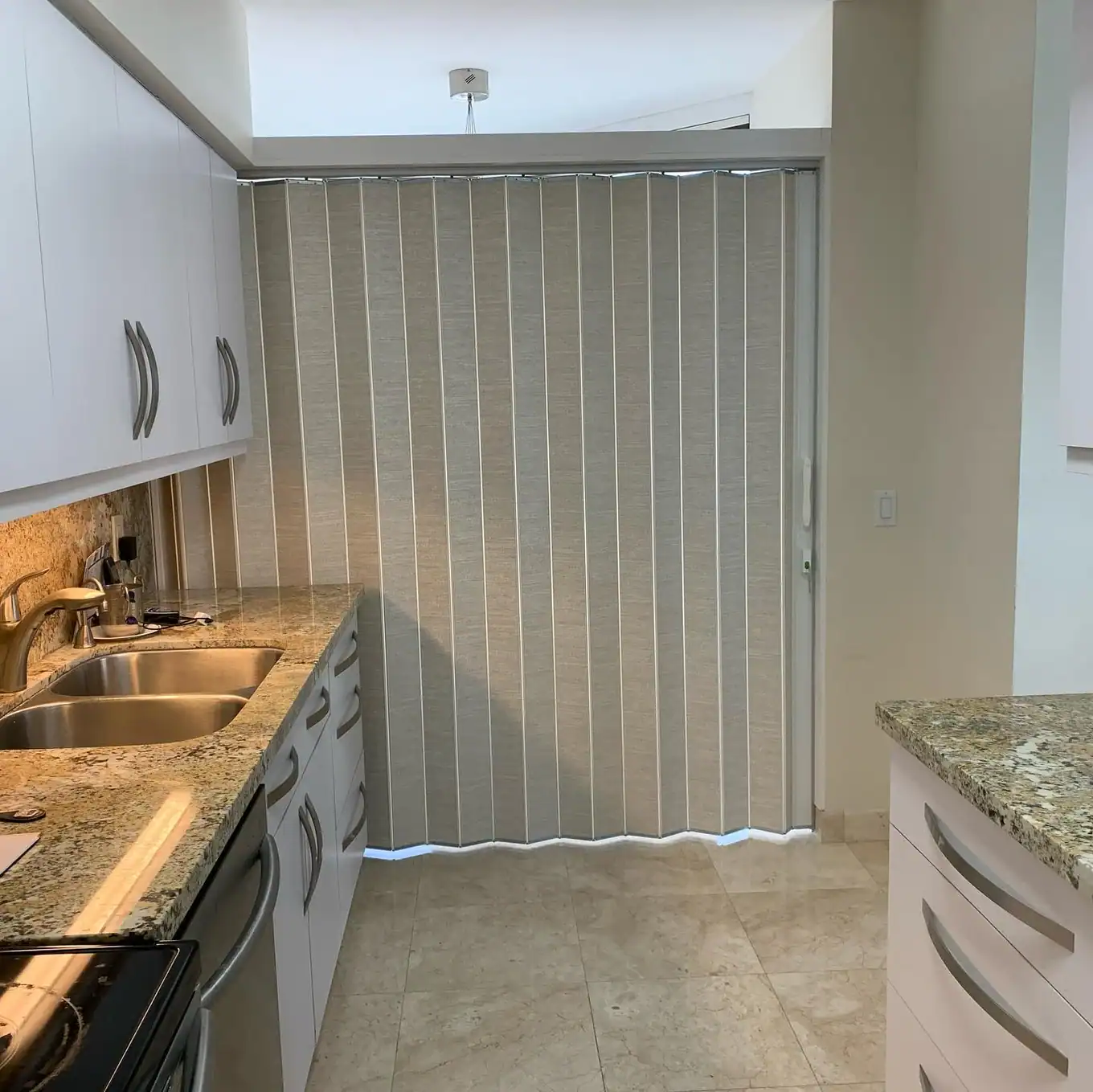

Series 240 Installations
.opti.webp)
.opti.webp)
.opti.webp)
Ready to Transform Your Space?
Get instant pricing for Series 240. No construction required. Custom-built to your exact specifications.
Configure Series 240 NowSeries 240 — Details, Finishes & Measuring
No other accordion door on the market matches the flexibility of Woodfold Series 240 Residential/Commercial Accordion Doors, and no other is specified more often. Whether added to residential, commercial, institutional or industrial settings, this Series delivers the high-use durability needed to successfully reconfigure space in homes, offices, schools, restaurants – all in stunning style. As you’d expect, options abound: curvable tracks, locks, latches, multiple meeting posts, plus finishes ranging from natural hardwoods, Vinyl-Lam, custom paint or stains, even applied murals. Durability, however, is not optional. Series 240 features Woodfold’s exclusive steel hardware system that assure flawless performance.
- Panels: 4¼” wide by ¼” thick; available in Vinyl-Lam and hardwood veneer faces front and back
- Panel Connectors: Flexible vinyl, color-coordinated to panel selection Standard colors: White, Sand, Gray, Brown, Black
- Track: 1-1/8″x 1″ aluminum, silver or bronze finish; curvable option available
- Wheels: Nylon wheel on steel axle with ball bearings supplied as standard
- Lead Post: ¾” x 2¾” aluminum, color coded to panel connector
- Jamb Molding: 1″ wide x 3/8″ deep aluminum
- Latch: Deadlatch with thumbturn on both sides; keylocks or magnetic catch options available
- Handle: Molded PVC with finger recess
- Width: Custom crafted to any width
- Height: Vinyl-Lam up to 10’1″; hardwoods up to 10’1″
- Stacking Space: 1¼” per foot, plus 2¾” for lead post
* Woodfold’s Series 140, 220, 240, 440 and 540 have been tested for ADA compliance for opening load force per ADA/BOMA SEC 4.1311. Tests were conducted by MEI Charlton, Inc., Portland, OR. Certain ADA applications may call for specific handle location placement which should be specified when door is ordered.
PLEASE NOTE: The stain and color samples on this page have been color matched using a monitor calibrated to the sRGB IEC1966-2.1 color profile. Intended only as a guide for color selection, the actual finish materials will vary due to the natural and acceptable variations in wood grain characteristics, textures, and color tones, as well as the color variation that occurs among individual computer monitors.

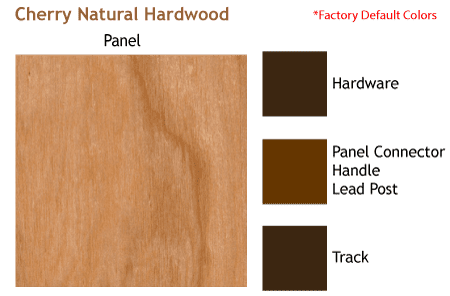

*All panel samples show factory default color combinations, unless noted otherwise.

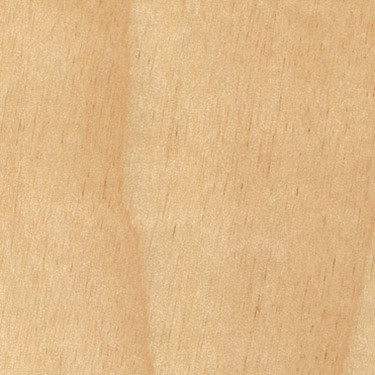

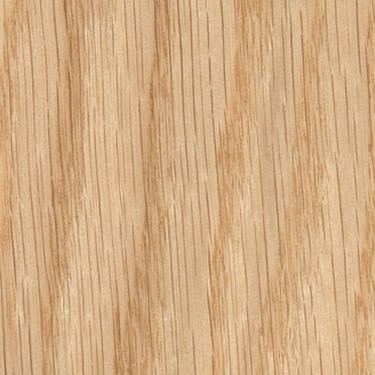

Natural Hardwood Veneers
Woodfold has today’s most popular hardwood species to match your interiors. Woodfold insists on select grade veneers, laminated to an engineered core to ensure excellent dimensional stability. Clear finish is standard; however, custom-stained finish service is always available.
Vinyl-Lam Woodgrains
Incredibly realistic looking, Woodfold’s Vinyl-Lam woodgrain finishes provide a wide range of color selection representing several wood species. Woodfold’s Vinyl-Lam finishes are laminated to an engineered core to ensure excellent dimensional stability.
Solid Colors and Textures
Woodfold’s solid color, multi-textured vinyl’s are selected to compliment the most popular current interior colorations. Woodfold’s Vinyl-Lam finishes are laminated to an engineered core for excellent dimensional stability.
Hardware & Connectors
Coordinating Hardware Hinge System A clear (silver) finish is supplied with Off-White and Chalk. A bronze finish supplied with all others.
Coordinating Vinyl Panel Connectors We carefully color coordinates our vinyl panel connectors as a standard feature.
To assure correct sizing of your Woodfold accordion door the finished opening should be measured precisely from side to side for width and from the header surface where the track will be attached, to the finished floor or counter surface for height.
Width Measure the width at the bottom, halfway up and at the top of the door and use the widest dimension you have. Note: if the widest dimension is at the bottom or center you may have to trim the suspension track to fit your opening at the top of the door as track lengths are made to the ordering width. This can be done with a hacksaw.
Height Measure from the top of the finished floor to the point where you are going to attach the track. NOTE: For those areas where the floor is uneven (e.g. concrete floors) please take 3 or 4 height measurements along the floor. Use the shortest measurement as the finished opening height except 2100, 3300 or 4100. For sound doors use tallest height.
Dimensions should be stated width first and then height and should represent sizes after any and all modifications have been done to the opening. Unless customer specified, we will allow 9/16″ floor clearance for doors over 4′ high and 5/16″ for doors 4′ and less. Beware of variations in floor and/or ceiling surfaces.
Please check your measurements for accuracy. Contact us if you need additional assistance.
